PowerMatch® 1 Full-color Micro-LED Light Engine
CN
PowerMatch® 1 Full-color Micro-LED Light Engine
Overview
Highlights
Gamut Ratio
Parameters
Related Products
The World's Smallest

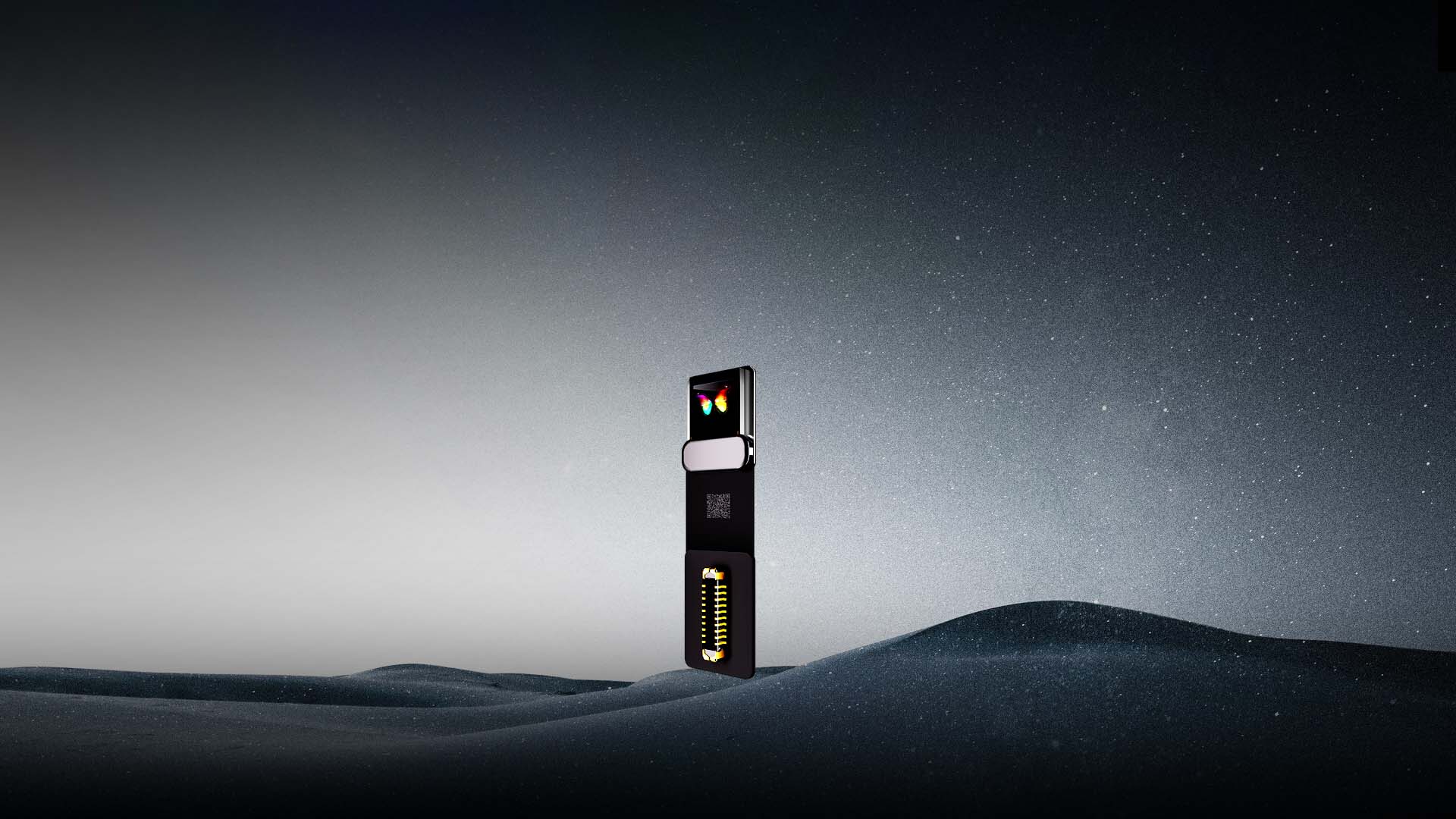

PowerMatch® 1 full-color Micro-LED light engine redefines compact AR displays with the world's smallest 0.18cc light engine (55% smaller than conventional 0.4cc three-color combination designs). At just 0.5g, it disappears into eyewear temples, finally enabling lightweight, all-day-comfort AR glasses without compromising visual quality.
Highlights
Screen Size
0.13 inch
Micro-LED Density
6350 PPI
Resolution(Color-pixel)
320 x 240
Luminous Flux
0.5 lm
Gamut Ratio
Parameters
Volume
0.18 cc
Weight
0.5 g
FOV
30°
EPD
3.6 mm
Luminous Flux
0.5 lm
Resolution(Color-pixel)
320 x 240
FWHM (R/G/B)
25 nm / 25 nm / 20 nm
Frame Rate
60 Hz
Gray Level
24 bits
Operating Temperature
-20°C~85 °C
Typical Power Consumption
Total: < 200 mW*
*Max Grayscale & Pixel Current (APL:10%)
Interface
MIPI & QSPI & SPI
